Photoset #1077 - Indianapolis Home Show Frame Reassembly / Camp Barn - 30x40 historic barn frame

First bent on the ground / camp barn frame
Photo #9244
First bent on the ground / camp barn frame
Second bent being assembled / camp barn, 30x40 barn frame
Photo #9245
Second bent being assembled / camp barn, 30x40 barn frame
First bent being stood up / Antique barn frame reassembly
Photo #9246
First bent being stood up / Antique barn frame reassembly

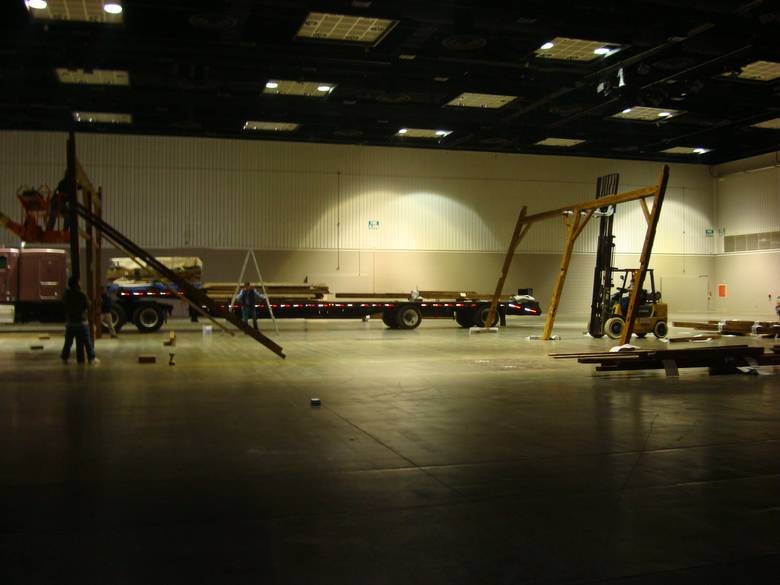

Second bent being moved into place / first bent braced and ready to be tied together
Photo #9247
Second bent being moved into place / first bent braced and ready to be tied together

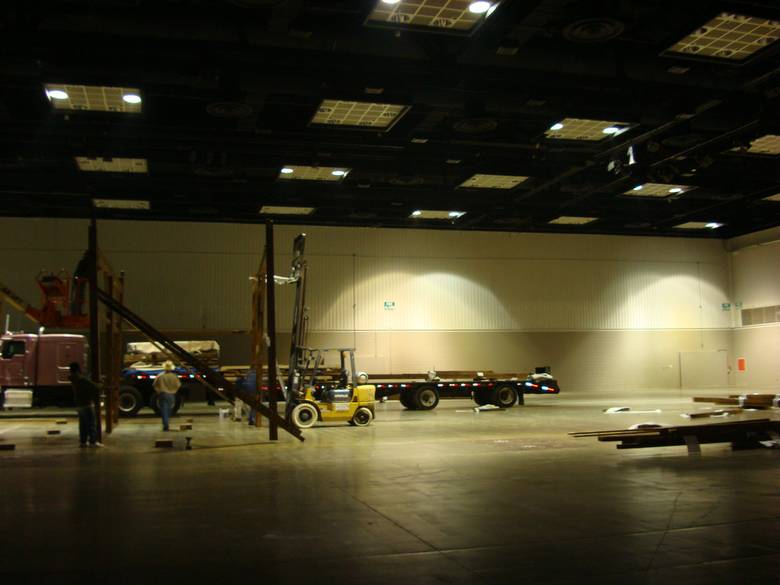

Bents one and two tied together / final camera position set
Photo #9248
Bents one and two tied together / final camera position set
Extra bracing added to first and second bents / Camp Barn frame reassembled for a trade show
Photo #9249
Extra bracing added to first and second bents / Camp Barn frame reassembled for a trade show

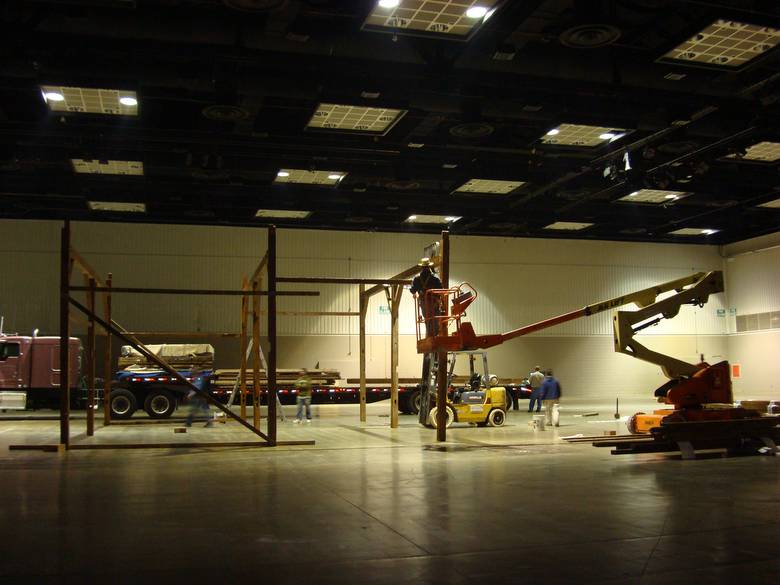

Third bent and lateral girts placed / 30x40 barn frame reassembled indoors
Photo #9250
Third bent and lateral girts placed / 30x40 barn frame reassembled indoors
Bottom braces placed on barn frame / Camp barn - sawn antique pine timberframe
Photo #9251
Bottom braces placed on barn frame / Camp barn - sawn antique pine timberframe

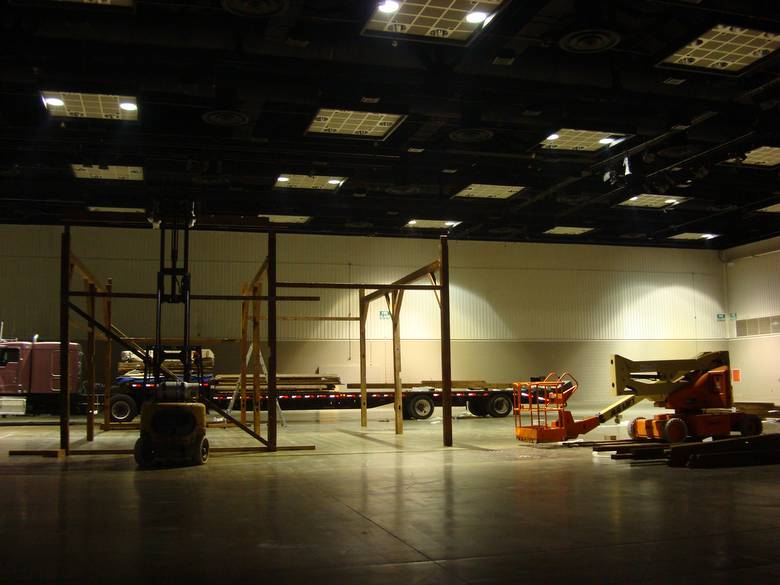

Top plate placed between bents one and two / Camp barn frame bents being tied together
Photo #9252
Top plate placed between bents one and two / Camp barn frame bents being tied together

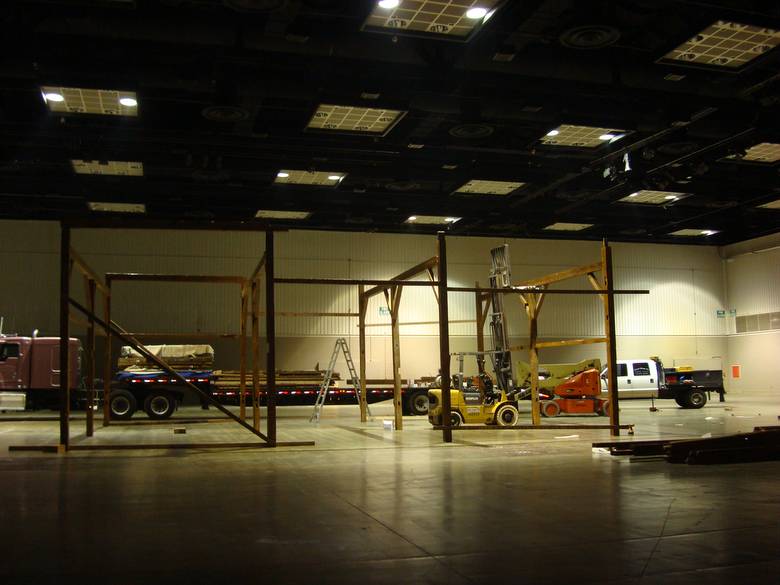

Fourth bent placed / Camp Barn - historic barn frame assembly
Photo #9253
Fourth bent placed / Camp Barn - historic barn frame assembly

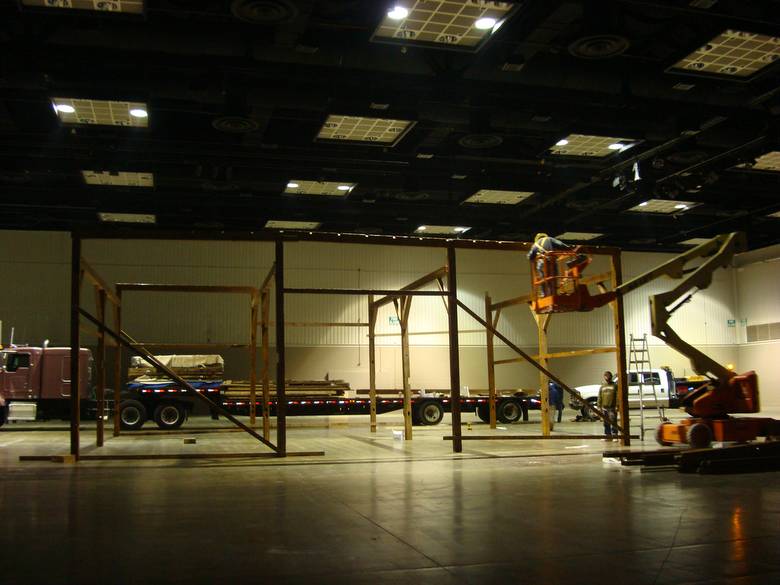

Second portion of top plate placed / Ties in bents 1 and 2 with bents 3 and 4
Photo #9254
Second portion of top plate placed / Ties in bents 1 and 2 with bents 3 and 4

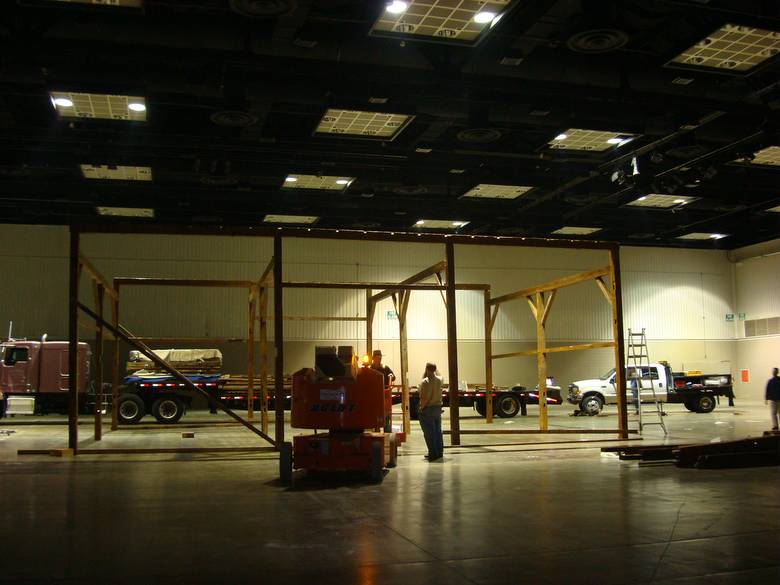

Rear top plate placed / In two pieces - ties all bents together in background
Photo #9255
Rear top plate placed / In two pieces - ties all bents together in background

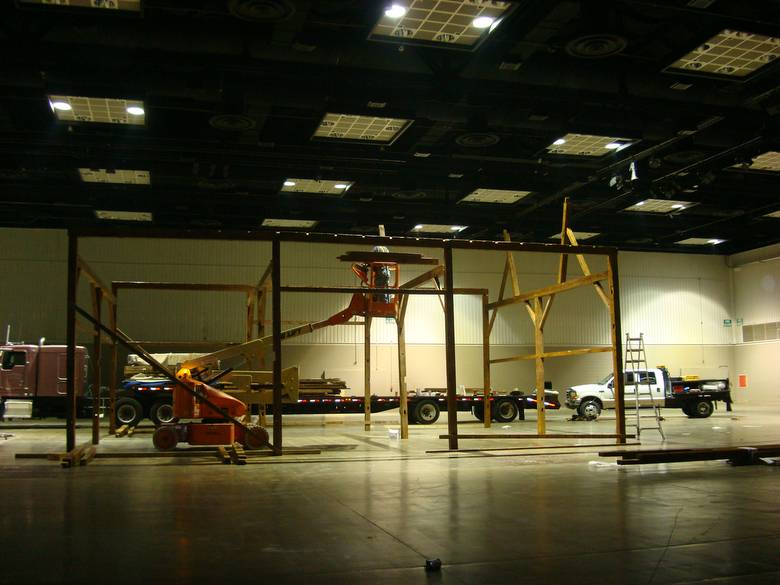

Loft posts being placed / diagonal posts placed with 4x4 bracing
Photo #9256
Loft posts being placed / diagonal posts placed with 4x4 bracing

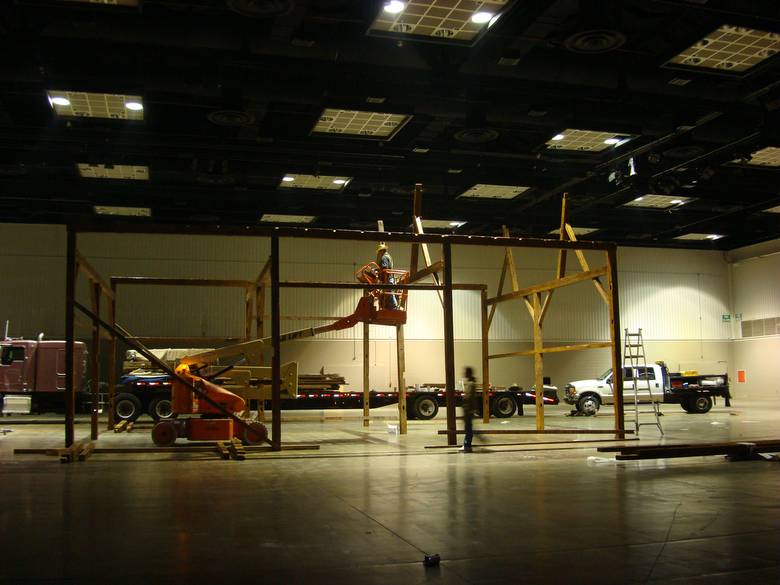

Top posts placed on third bent / Camp barn frame is 30'x40', antique pine timbers
Photo #9257
Top posts placed on third bent / Camp barn frame is 30'x40', antique pine timbers

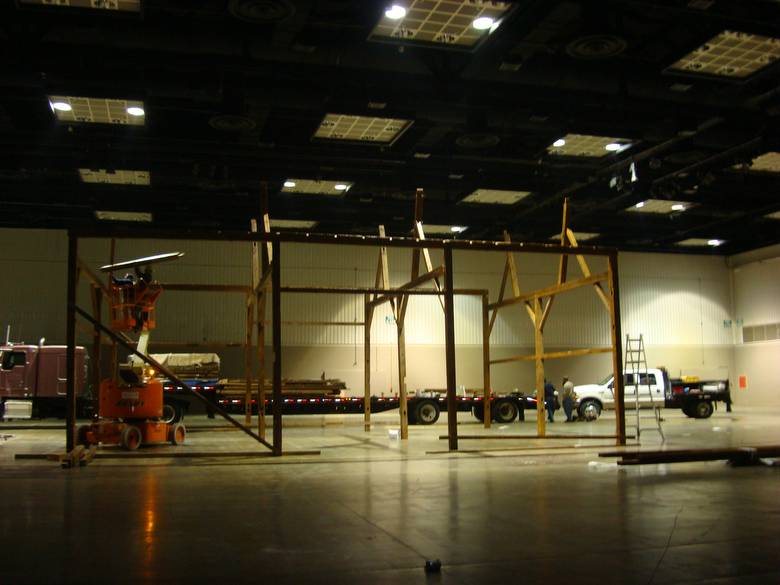

Loft posts / uprights placed on 2nd and 1st bents / Chronological representation of barn frame reassembly
Photo #9258
Loft posts / uprights placed on 2nd and 1st bents / Chronological representation of barn frame reassembly

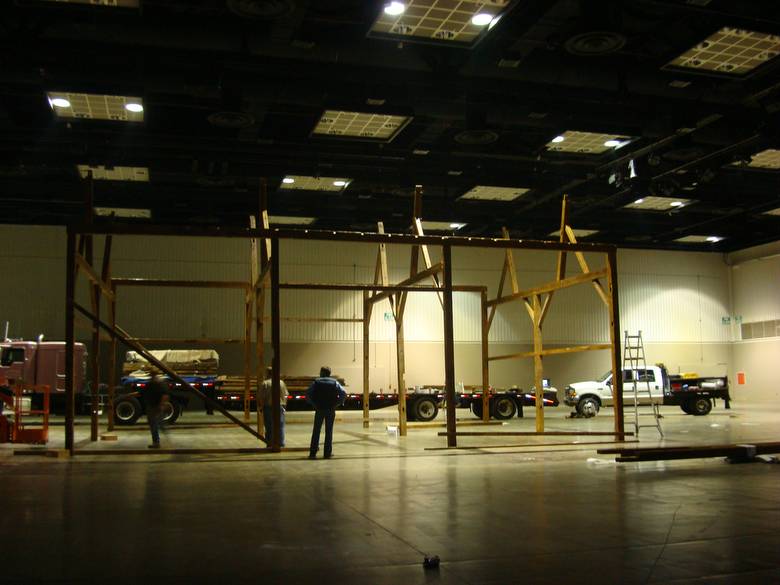

All top / loft posts placed / with 4x4 diagonal bracing
Photo #9259
All top / loft posts placed / with 4x4 diagonal bracing

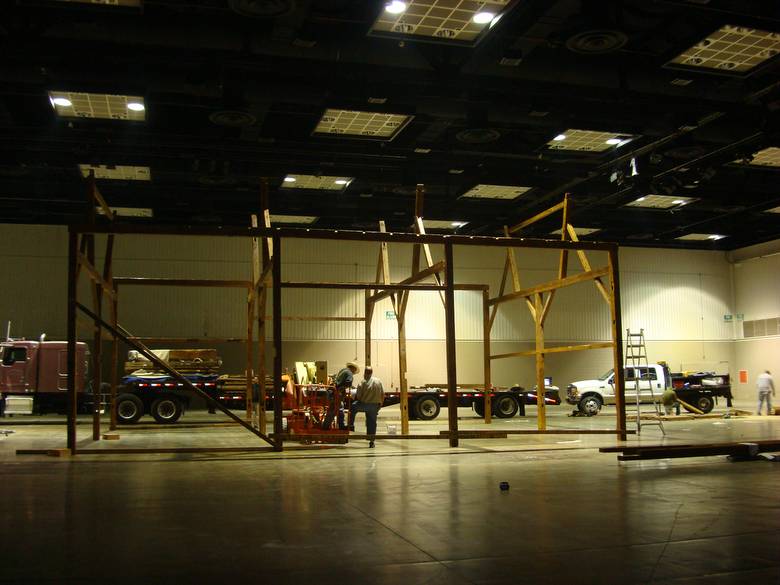

High braces placed on each loft end / Camp barn frame - from Cannon Salvage
Photo #9260
High braces placed on each loft end / Camp barn frame - from Cannon Salvage

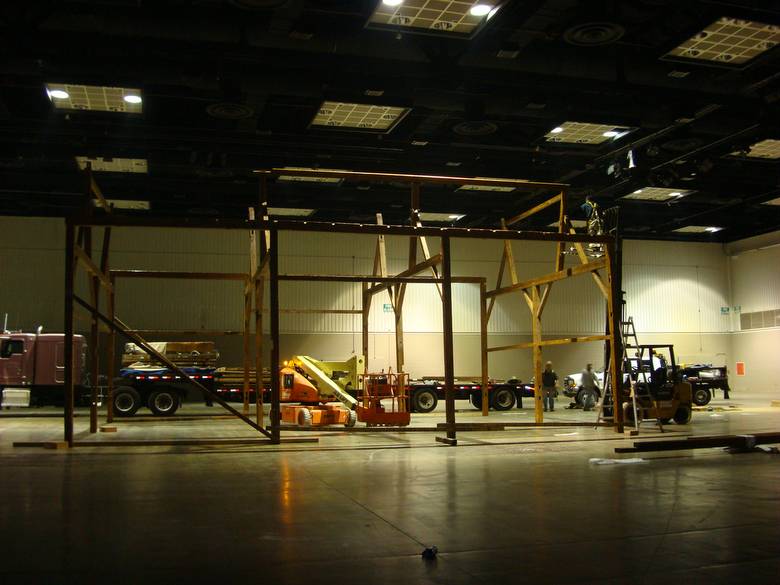

Rafter plate placed in foreground / Long rafter helps to better tie in the barn frame
Photo #9261
Rafter plate placed in foreground / Long rafter helps to better tie in the barn frame

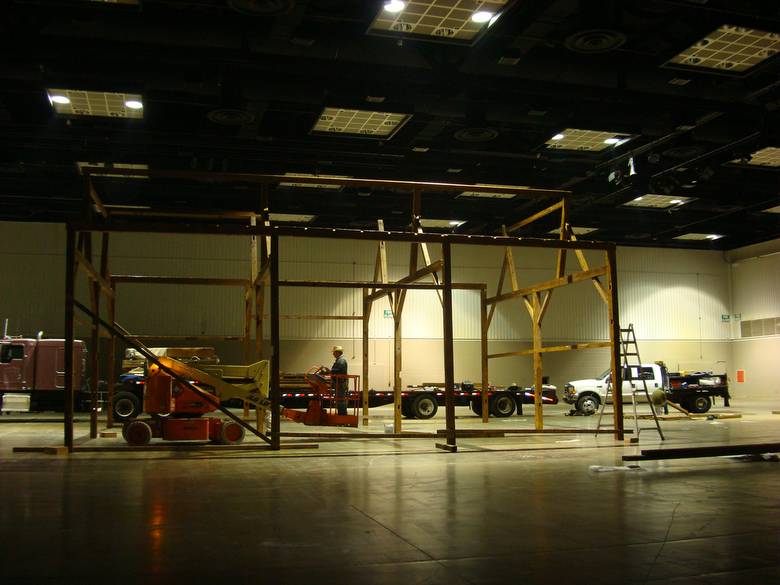

Front rafter plate finished, rear rafter plate sta / Camp barn is a historic barn frame being erected
Photo #9262
Front rafter plate finished, rear rafter plate sta / Camp barn is a historic barn frame being erected

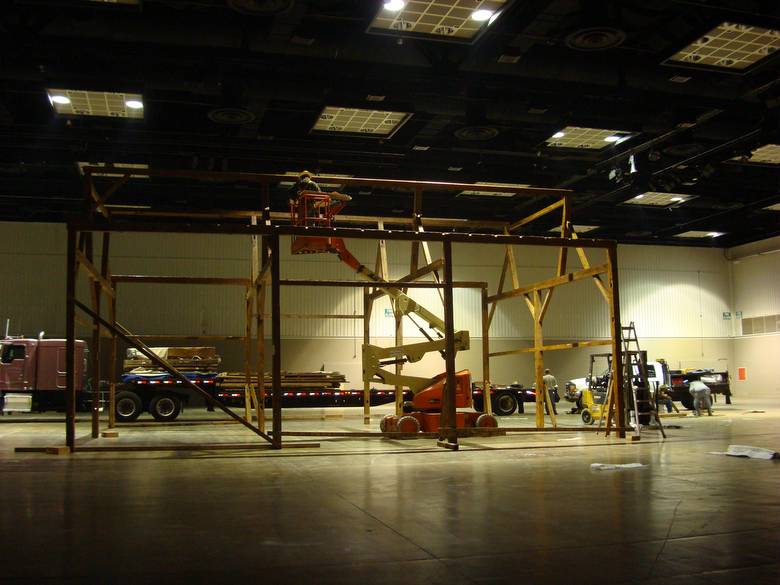

Rear rafter plate is finished / Antique pine plates tie the barn frame together
Photo #9263
Rear rafter plate is finished / Antique pine plates tie the barn frame together

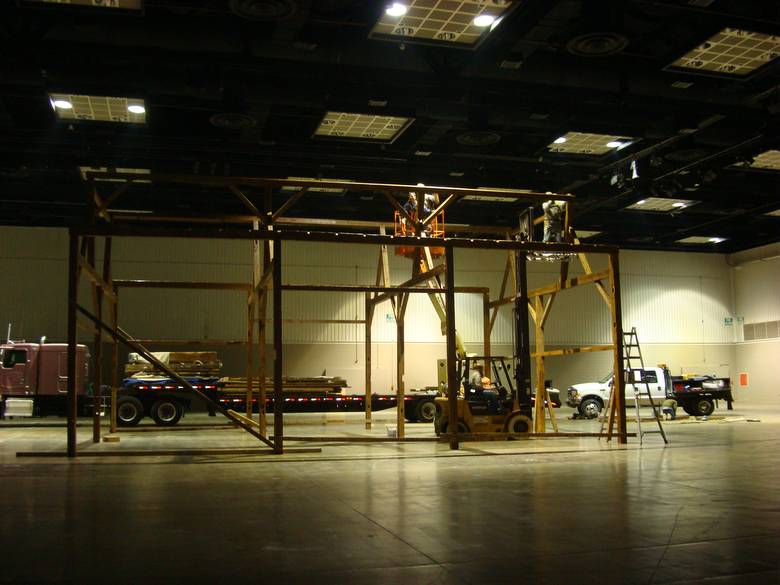

Loft knee braces being placed / cross bracing with 4x4 Circle-Sawn pine beams
Photo #9264
Loft knee braces being placed / cross bracing with 4x4 Circle-Sawn pine beams

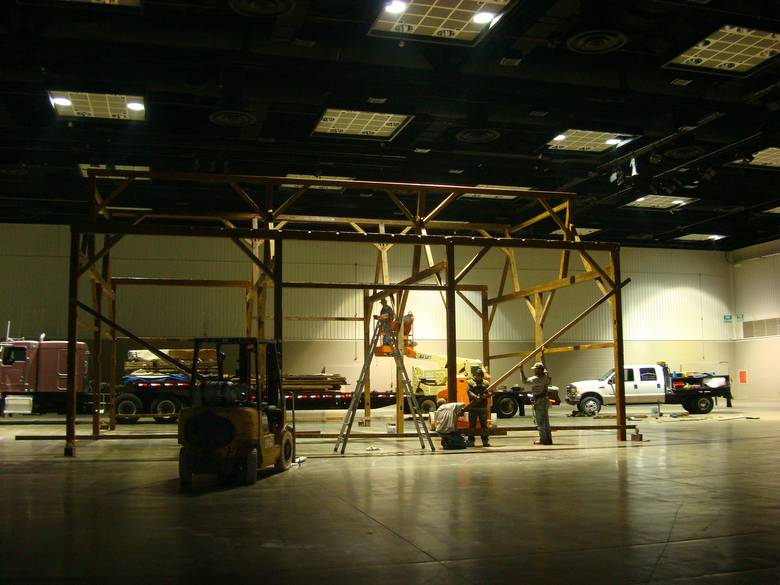

Rafter and top plate cross ties placed / foreground knee braces are in place
Photo #9265
Rafter and top plate cross ties placed / foreground knee braces are in place
Rear knee braces placed / Camp Barn frame is almost completely assembled
Photo #9266
Rear knee braces placed / Camp Barn frame is almost completely assembled

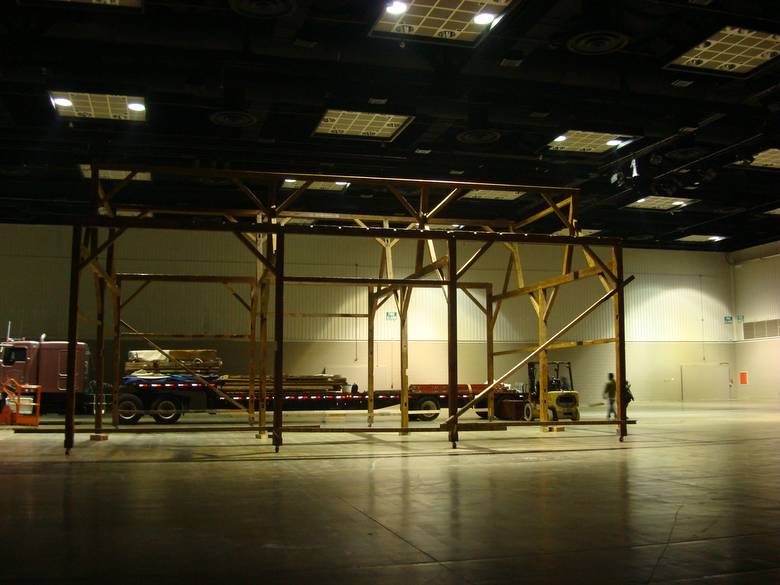

Camp Barn is up on caster wheels and ready to move / Frame being moved into place at Indianapolis show
Photo #9267
Camp Barn is up on caster wheels and ready to move / Frame being moved into place at Indianapolis show
